35mm hinge punch locator tool with adjustable margin settings for cabinet and wardrobe installation

This hinge locating rule addresses a specific need in cabinet making and furniture assembly: achieving consistent, accurate placement of 35mm cabinet hinges. Whether you're fitting new kitchen cabinet doors, installing wardrobe panels, or undertaking other woodworking DIY projects, this tool provides a tangible reference point that helps standardise the hinge positioning process. Its adjustable margin capability allows you to tailor the hinge opening distance to match different installation preferences or manufacturer recommendations, offering flexibility that simple fixed templates lack. The aluminium alloy construction contributes to a tool that is sufficiently durable for repeated workshop use while remaining light enough for comfortable handling during extended fitting sessions. By providing a physical guide for both marking and alignment, it reduces the likelihood of misaligned hinges that can cause doors to bind or sit incorrectly.

Features and Construction

This hinge locator combines practical material choices with purpose-designed functionality for cabinet hinge installation. The tool's primary role is to establish precise reference points for drilling hinge cup holes at a consistent distance from the cabinet door edge, which is crucial for professional-looking results in home woodworking projects.

Material and Build

The main body of the locating rule is made from aluminium alloy, a material selected for its favourable balance of strength and weight. This construction allows the tool to maintain its shape and dimensional stability during use without becoming cumbersome to handle. The inclusion of a hard alloy blade tapper provides a dedicated marking component that can withstand repeated contact with wood surfaces. This blade has undergone high-temperature heat treatment, a process that enhances its hardness and contributes to maintaining a sharp edge suitable for creating clear marking points. Together, these material choices result in a tool built for the practical demands of hinge installation work rather than decorative purposes.

Size and Practical Fit

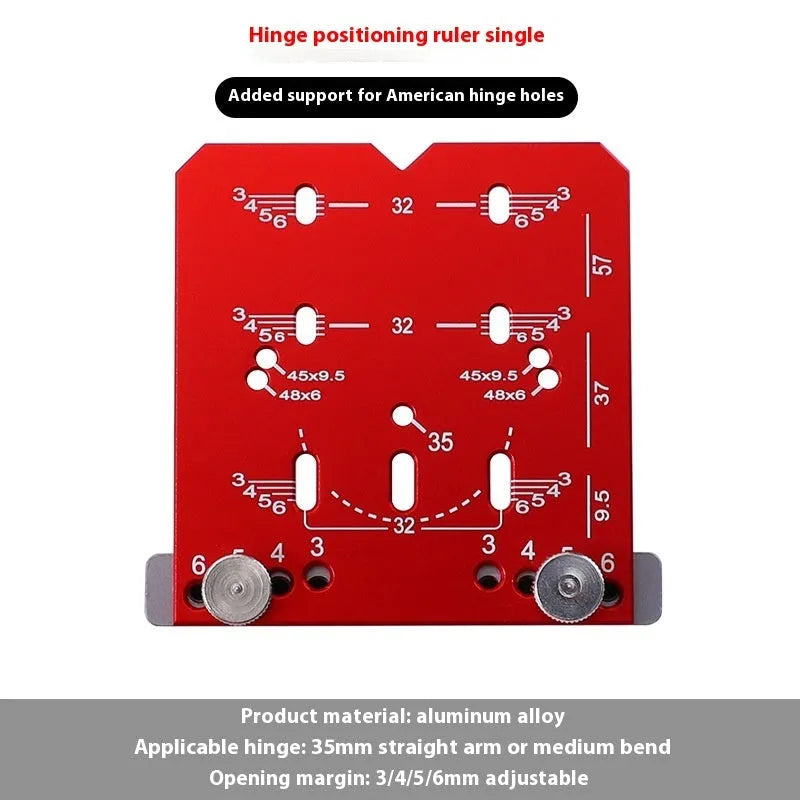

The tool is specifically configured for 35mm hinge systems, which represent a common standard for cabinet and wardrobe hardware. This compatibility ensures it aligns correctly with the hinge cups used in many home furniture applications. The adjustable margin mechanism allows users to set the distance between the hinge centre and the cabinet door edge to either 3mm, 4mm, 5mm, or 6mm. This adjustability accommodates different installation preferences and hardware requirements, providing versatility within its specialised function. While exact overall dimensions aren't specified, the tool's design focuses on providing a stable reference surface that can be positioned against door edges for consistent marking across multiple cabinet doors in a single project.

Uses and Placement

The primary application for this tool is in furniture assembly and cabinet installation scenarios where consistent hinge placement directly impacts the final functionality and appearance. It serves as a bridge between basic measurement techniques and more expensive dedicated workshop jigs, making precise hinge installation more accessible for DIY enthusiasts and home woodworkers.

Event or Professional Use

For professional cabinet installers or carpenters undertaking multiple fitting jobs, this tool offers time-saving consistency when installing 35mm hinges across different cabinet units. The adjustable margin feature allows quick adaptation to different client specifications or cabinet designs without requiring separate jigs for each margin setting. The hard alloy tapper blade provides a reliable marking method that creates clear centre points for drill bits, reducing the chance of bit wander during the crucial initial drilling phase. This consistency is particularly valuable when installing matching cabinet runs in kitchens or wardrobes where uniform door alignment is visually important.

Everyday Home Use

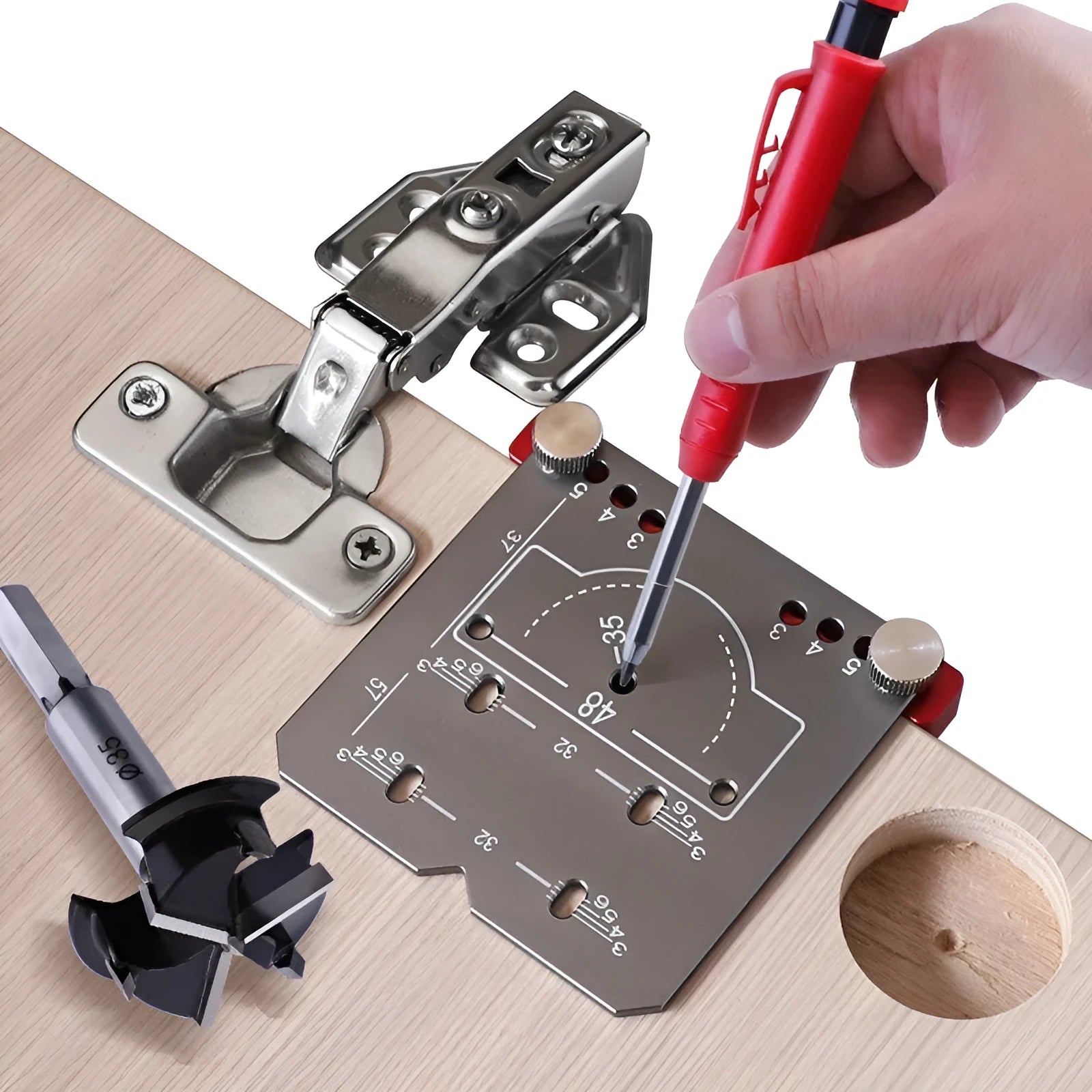

For DIY home improvement projects, this locating rule simplifies what can be a fiddly measurement task when fitting or replacing cabinet doors. It reduces the need for complex calculations or repeated measuring by providing a physical template that can be positioned against the door edge. Home users fitting kitchen cabinets, bathroom vanities, or built-in wardrobes can achieve more professional-looking results with reduced trial and error. The tool's straightforward operation – setting the margin, positioning against the door edge, and marking with the tapper – makes hinge installation more approachable for those with basic woodworking skills but without extensive workshop equipment.

Benefits and Buying Value

This hinge locator provides value through its focused functionality and practical construction, addressing specific pain points in cabinet installation work. It represents a targeted solution rather than a multi-purpose tool, with design choices that support its specialised role in woodworking projects involving 35mm hinge systems.

Reuse and Low Maintenance

The tool's aluminium alloy construction and heat-treated blade component are designed to withstand repeated use across multiple projects without significant degradation. Unlike disposable templates or paper guides, this physical tool can be stored and reused whenever cabinet hinge installation work is required. Maintenance requirements are minimal – primarily involving keeping the marking blade clean and ensuring the adjustable mechanism remains free from sawdust buildup. This reusability makes it a practical addition to a home workshop toolkit, available whenever cabinet refitting or furniture building projects arise, potentially serving for numerous installations over time.

Why Choose This Product

This hinge locator stands out for its specific compatibility with 35mm hinge systems combined with adjustable margin settings – a combination that provides both focus and flexibility within its niche application. The aluminium alloy construction offers a practical balance between durability and weight that suits extended workshop use. For those regularly installing cabinet doors or wardrobe panels, it provides a more reliable and consistent method than improvised measurements or makeshift templates. The inclusion of a dedicated hard alloy tapper blade specifically for marking hinge centres demonstrates attention to the complete hinge installation process rather than just initial alignment. It represents a purpose-built solution for a common woodworking task, designed to deliver consistent results through physical guidance rather than relying solely on user measurement skill.
