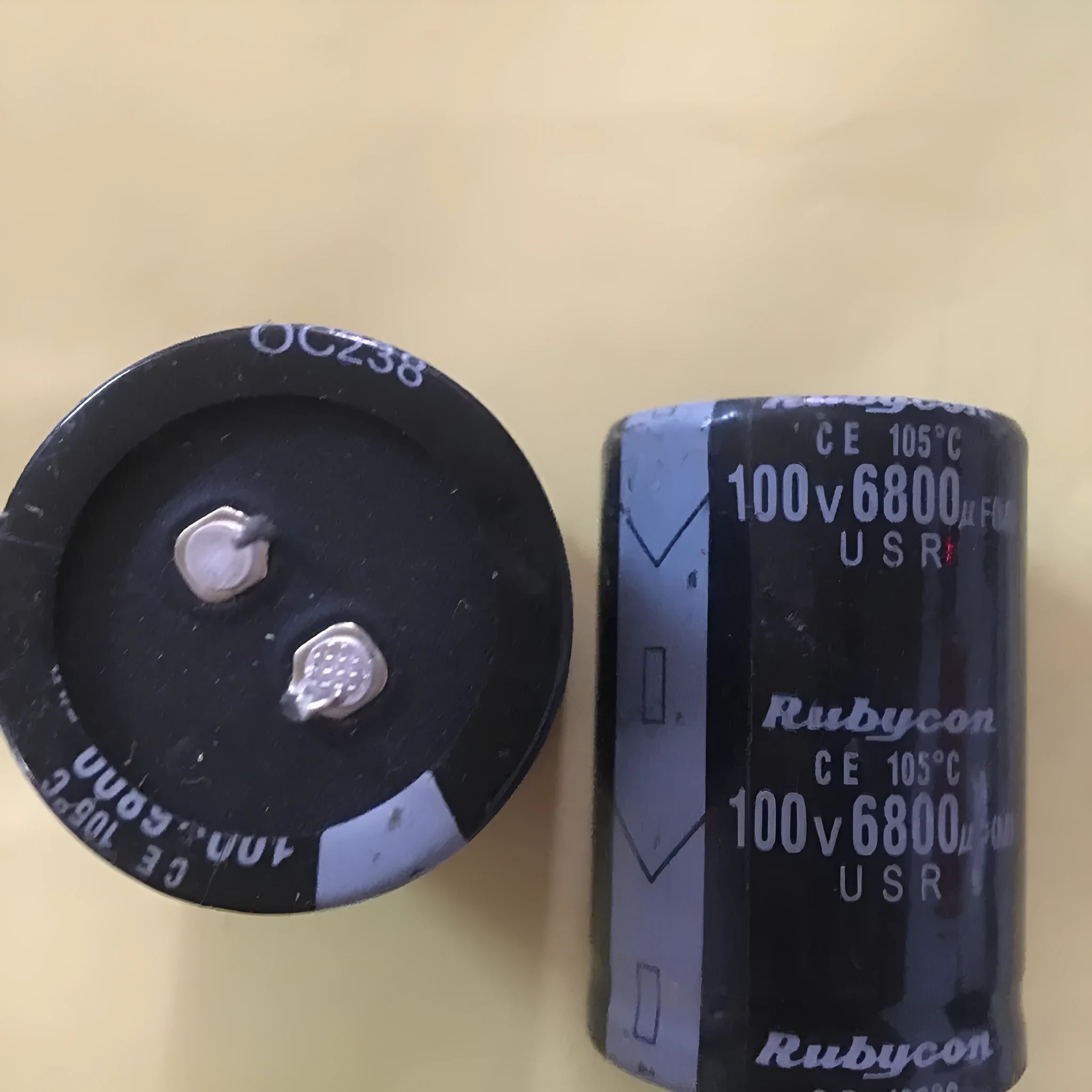

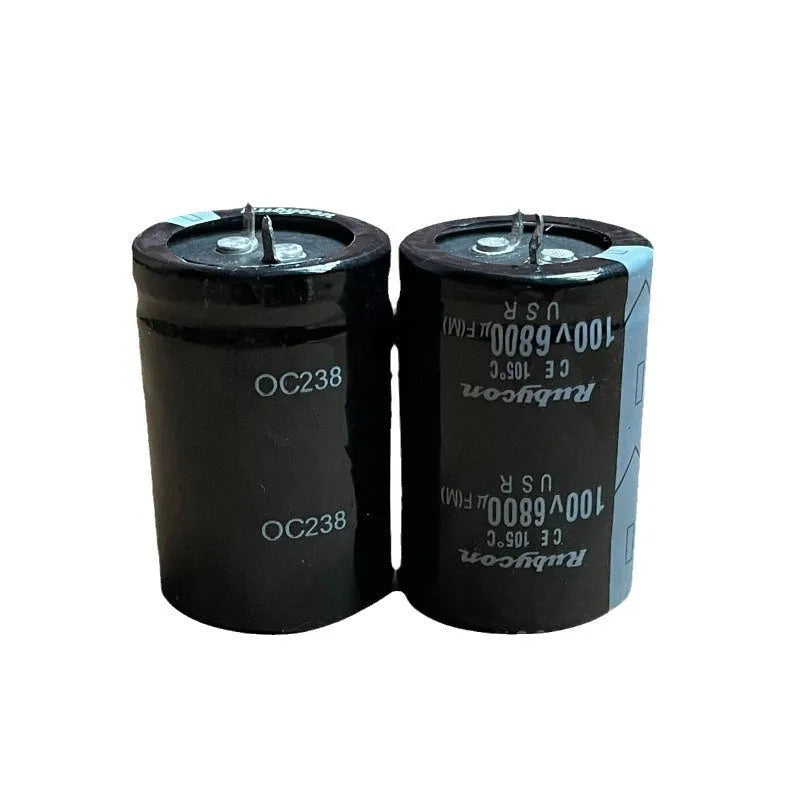

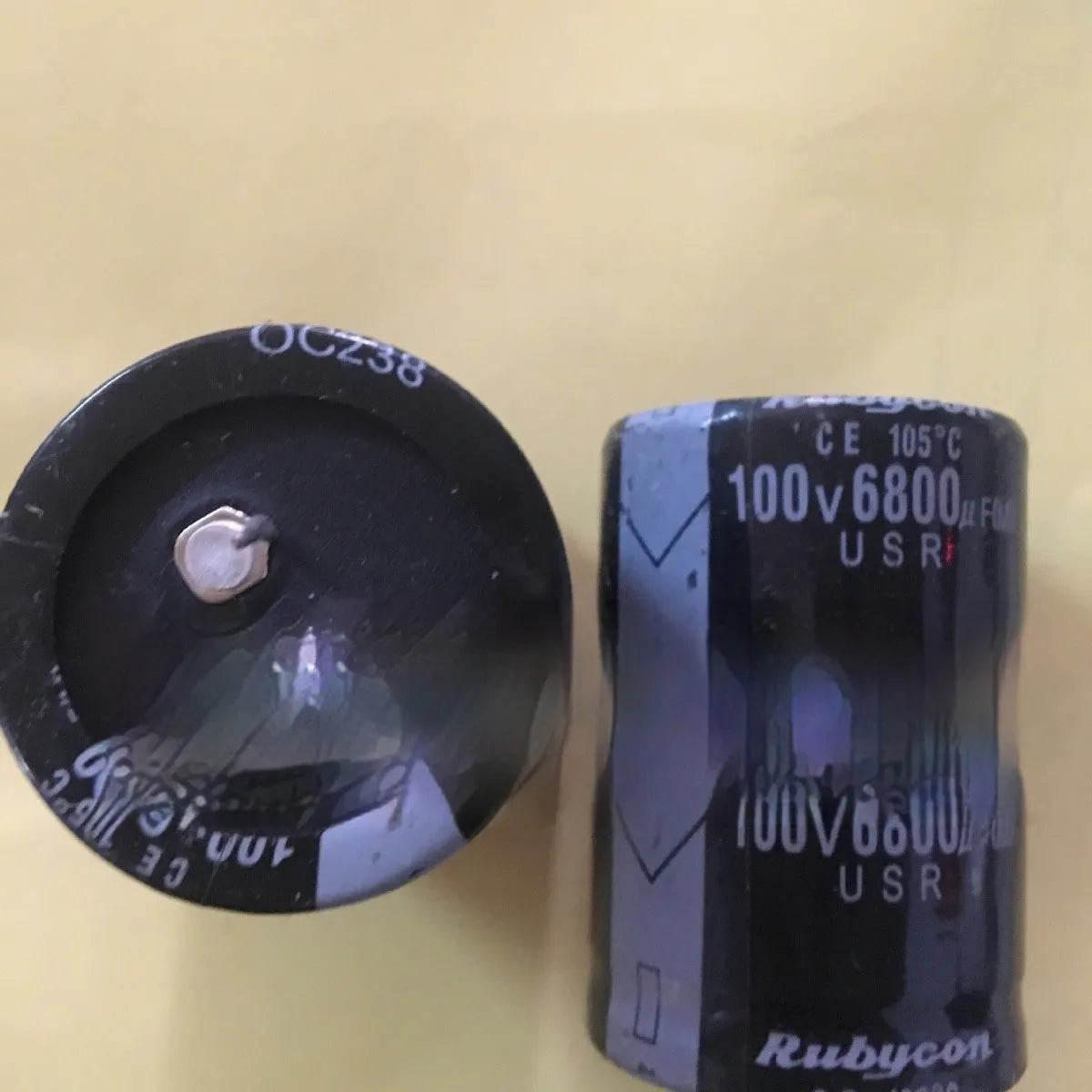

6800UF Electrolytic Capacitor 100V 2000 Hours 105°C Filtering Application 10MM Lead Spacing Aluminium Foil Electrolytic Paper Construction Boxed Packing
6800UF Electrolytic Capacitor 100V 2000 Hours 105°C Filtering Application 10MM Lead Spacing Aluminium Foil Electrolytic Paper Construction Boxed Packing
6800UF Electrolytic Capacitor 100V 2000 Hours Filtering Application Aluminium Foil Construction
This electrolytic capacitor is built for filtering applications where smooth DC output from power supplies is needed. With a capacitance of 6800µF and a rated voltage of 100V, it is suited to a range of industrial and hobbyist electronics. The capacitor provides 2000 hours of service life at 105°C, giving it a dependable operating window in warm environments. It uses aluminium foil and electrolytic paper as its core dielectric materials, and the leads are spaced at 10MM for straightforward soldering onto a PCB or terminal board. The product arrives in a boxed pack, making it easy to store and handle.
Features and Construction
The capacitor is built from well-established materials for filtering duties. The key specifications are clearly stated, helping you confirm compatibility with your project requirements.
Material and Build
Aluminium foil and electrolytic paper form the dielectric assembly inside the capacitor. These materials are commonly used in electrolytic capacitors for their capacity to deliver high capacitance values in a compact package. The external casing is standard for through-hole electrolytic types, and the leads are tinned for reliable soldering.
Size and Practical Fit
The capacitor is available in two dimension options: 35×50CM and 35×60CM. The 10MM lead spacing matches many standard PCB layouts, simplifying installation. The larger dimension option allows for higher thermal dissipation in continuous filtering tasks.
Uses and Placement
This component is primarily intended for filtering roles in power electronics. Its specifications align with common requirements for smoothing ripple after rectification.
Event or Professional Use
In professional settings such as power supply repair or manufacturing, this capacitor can be used for bulk filtering in linear power supplies, inverters, and frequency converters. The 2000-hour rating at 105°C provides a reliable baseline for planning maintenance cycles.
Everyday Home Use
Hobbyists and electronics enthusiasts will find this capacitor useful for building or repairing audio amplifiers, bench power supplies, and other DC-powered circuits. The 10MM lead spacing makes it easy to prototype on stripboard or veroboard.
Benefits and Buying Value
This electrolytic capacitor offers a straightforward solution for filtering needs with clearly stated performance data and practical dimensions.
Reuse and Low Maintenance
Once installed, the capacitor requires no regular maintenance beyond operating within its rated voltage and temperature. The boxed packing helps keep multiple units organised for batch projects.
Why Choose This Product
The combination of 6800µF capacitance, 100V rating, and 2000-hour life at 105°C addresses common filtering requirements without over-specification. The choice between two dimension options gives flexibility for different assembly constraints.
