DC-DC Step Down Power Module: Convert 12-24V Vehicle Power to Stable 5V 3A Output

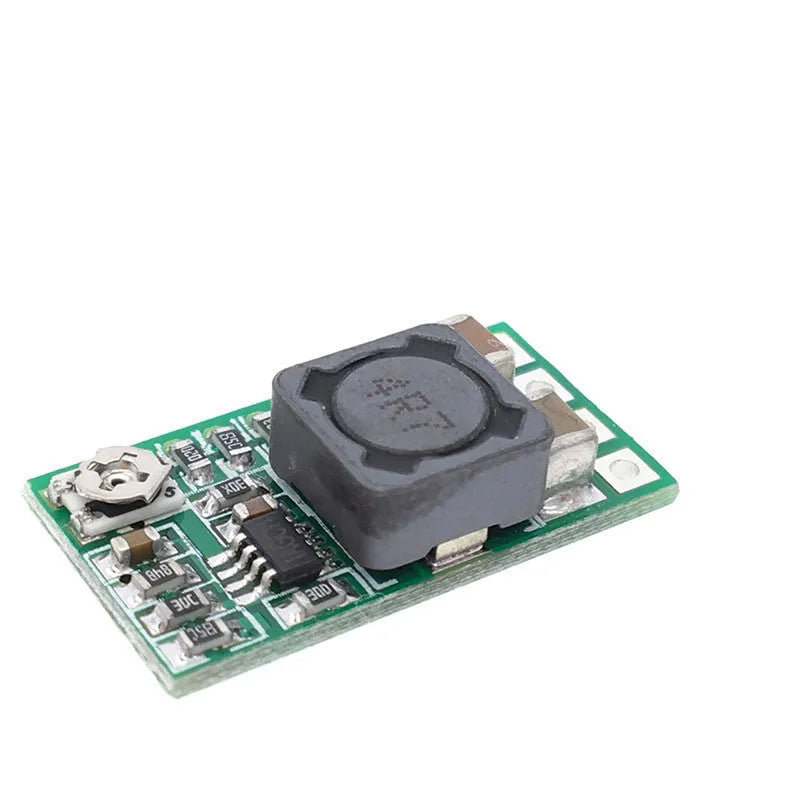

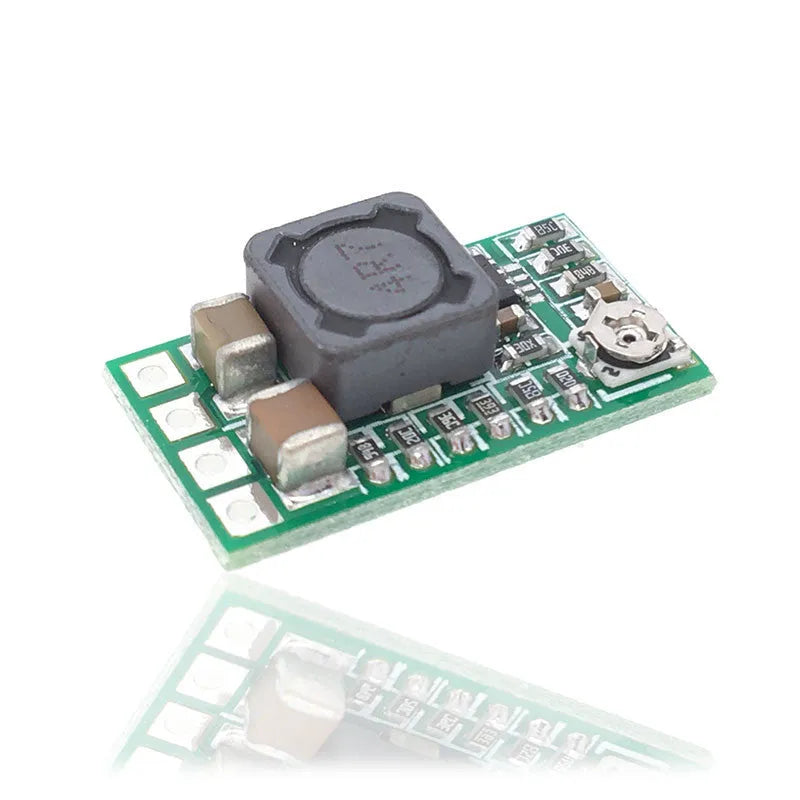

This compact DC-DC buck converter module provides reliable voltage conversion for automotive, marine, and industrial applications where stable 5V power is needed from higher voltage sources. Measuring just 35mm × 20mm × 10mm, the green PCB-mounted module efficiently steps down input voltages between 12-24V DC to a precisely regulated 5V output capable of delivering up to 3A continuous current. With ±1% load regulation and ±0.5% voltage adjustment rates, it maintains consistent output voltage even as input voltage or load conditions change, making it suitable for powering sensitive electronics like microcontroller boards, sensors, and USB charging devices. The module's 200μS dynamic response speed helps maintain stability during sudden load changes, while its 0.85mA quiescent current minimises standby power consumption.
Features and Construction
The module combines switching regulator technology with protection features in a compact format suitable for space-constrained installations. Built on a green fibreglass PCB measuring 35mm wide by 20mm long, the board stands 10mm tall including mounted components.
Material and Build

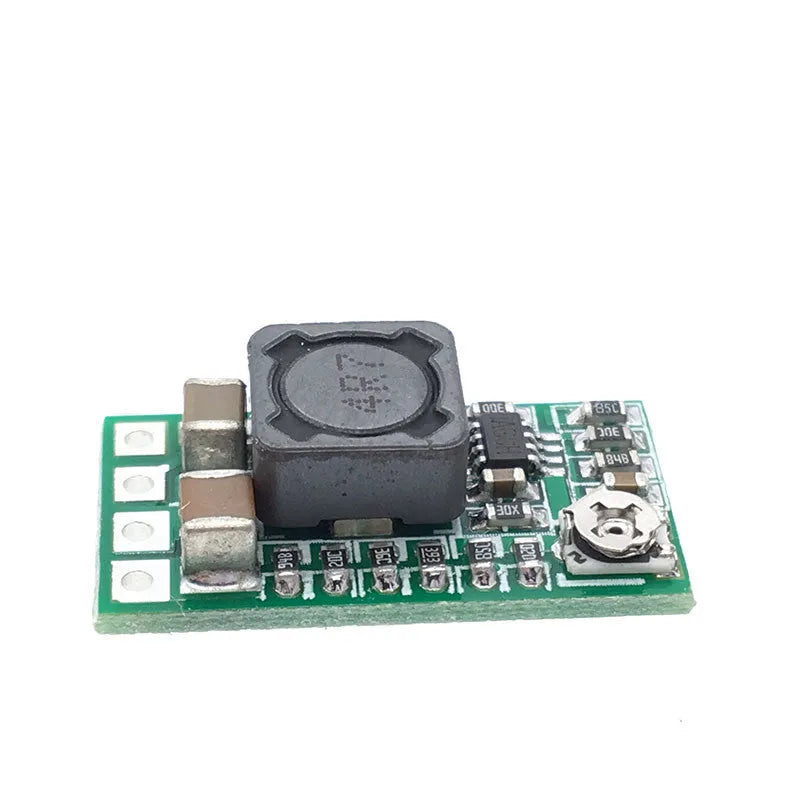

Surface-mount electronic components populate the green PCB, including power MOSFETs for efficient switching regulation and aluminium electrolytic capacitors for input and output filtering. Copper circuit traces handle the 3A current capacity while maintaining low resistance. The board lacks conformal coating, so it should be used in dry environments or protected from moisture exposure. Four corner mounting holes allow secure installation to prevent vibration-related damage in mobile applications.
Size and Practical Fit

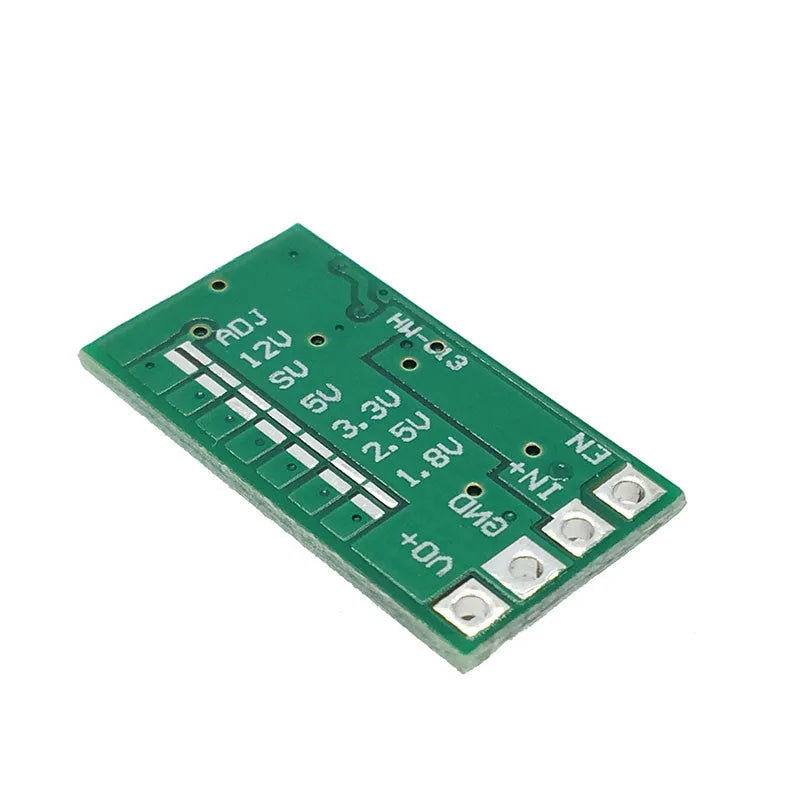

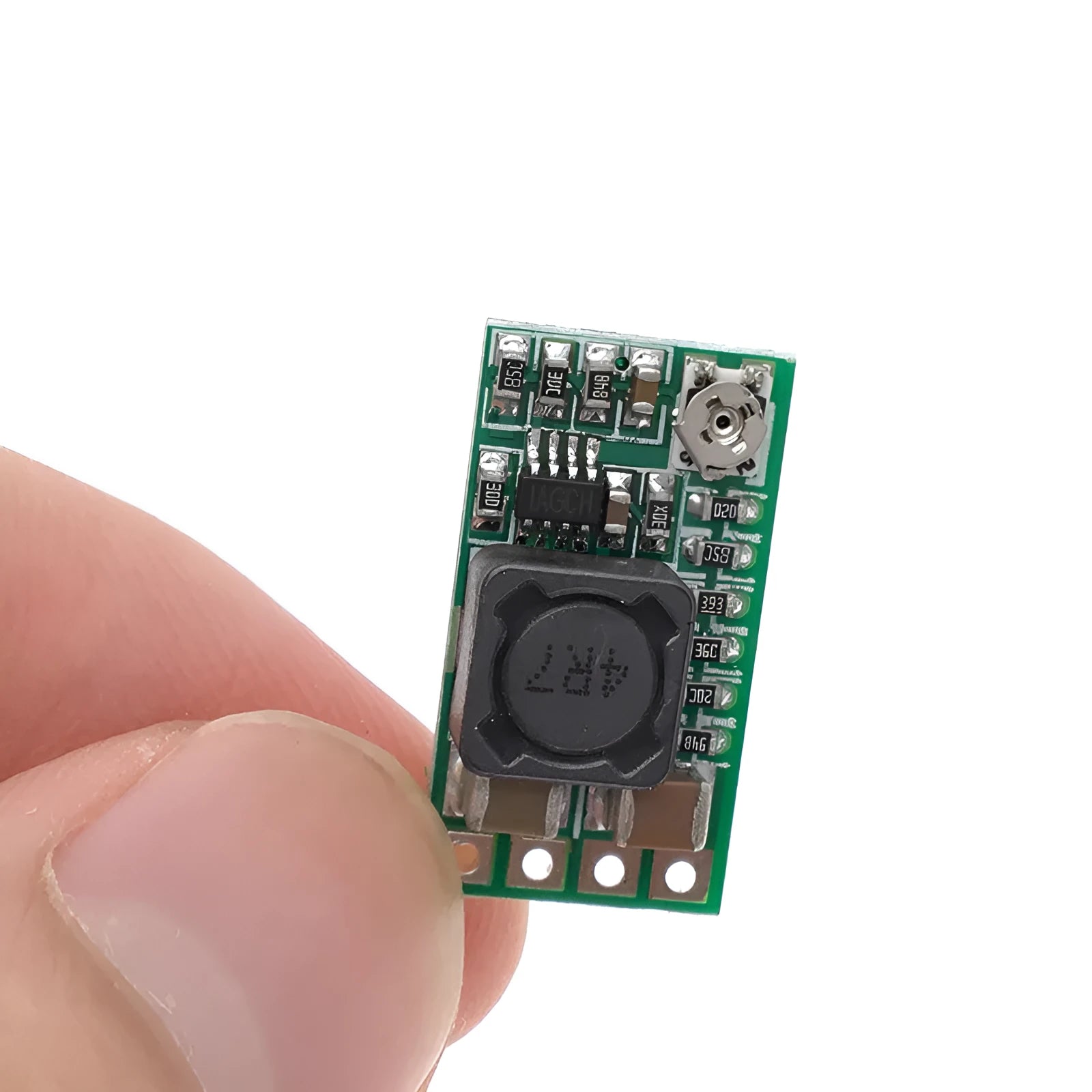

With dimensions of 35mm × 20mm × 10mm, the module fits easily into dashboard compartments, project enclosures, or equipment bays where space is limited. The 35mm width provides sufficient board area for heat dissipation during continuous 3A operation, while the 10mm height accommodates taller components like the electrolytic capacitors. Terminal connections are positioned along the board edges for straightforward wiring access.
Uses and Placement
This voltage converter serves multiple applications where stable 5V power is required from higher voltage DC sources, particularly in mobile or variable-input environments.
Event or Professional Use
In professional settings, the module can power monitoring equipment, data loggers, or communication devices from vehicle electrical systems. The ±1% load regulation ensures sensitive measurement equipment receives stable voltage despite varying engine RPM or alternator output. Installations benefit from the output short-circuit protection, which prevents damage if wiring faults occur during field operation.
Everyday Home Use
For DIY electronics projects, the converter provides regulated 5V power for Raspberry Pi boards, Arduino projects, LED lighting systems, or USB charging ports from 12V battery banks or solar setups. The 3A capacity supports powering multiple devices simultaneously, while the compact size allows integration into existing project enclosures without significant redesign.
Benefits and Buying Value
The module offers practical advantages through its combination of regulation accuracy, protection features, and compact form factor suitable for diverse installation scenarios.
Reuse and Low Maintenance
With no moving parts and solid-state construction, the module requires minimal maintenance once installed. The output short-circuit protection helps prevent catastrophic failure if wiring faults occur, potentially extending the module's service life. The 40℃ temperature rise specification at full load indicates thermal management designed for sustained operation.
Why Choose This Product
This converter provides precise voltage regulation with better than typical load regulation performance at ±1%, making it suitable for applications where voltage stability matters. The inclusion of short-circuit protection adds safety margin missing from many basic converter modules. While lacking built-in reverse polarity protection, this allows users to implement their preferred protection method suited to their specific application requirements.
