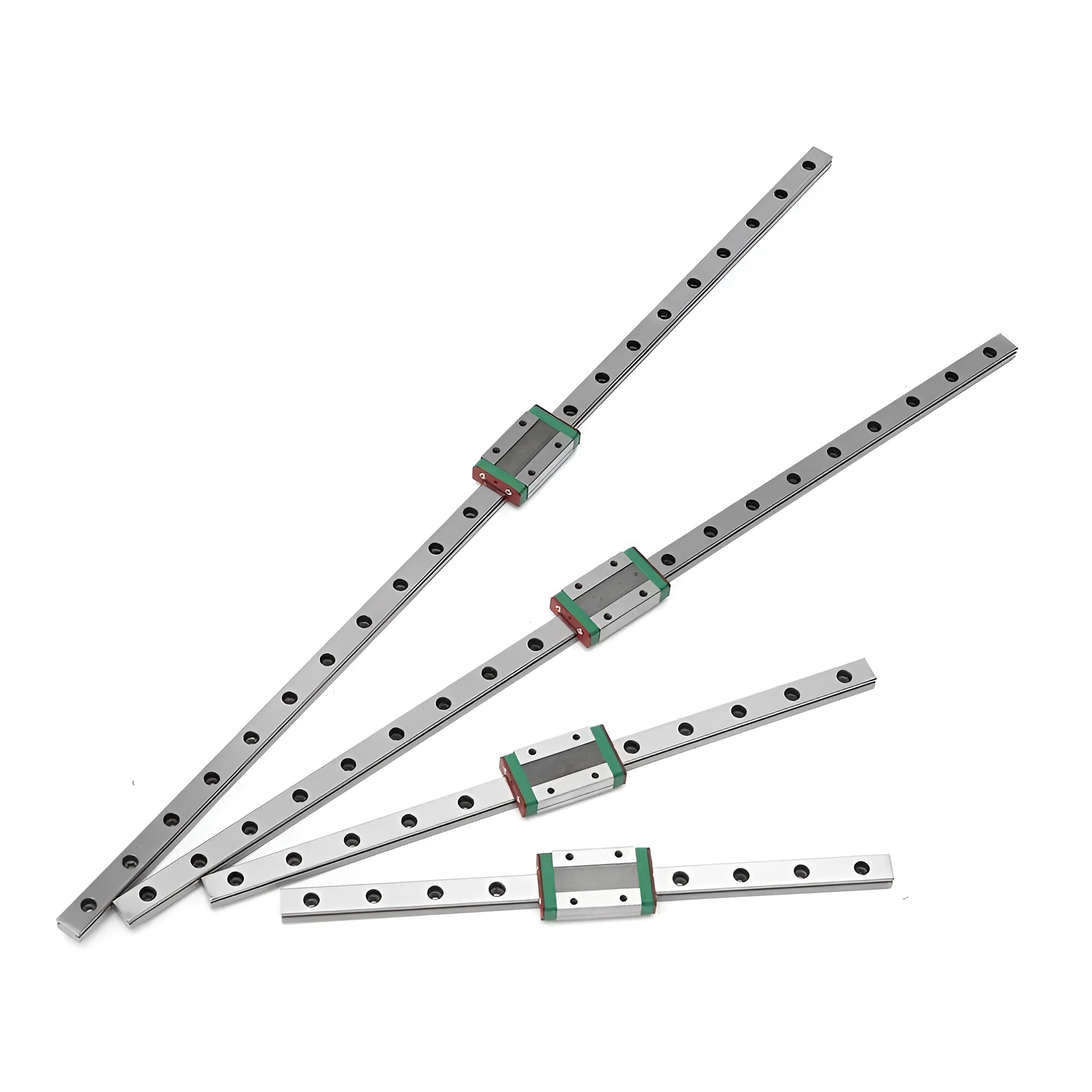

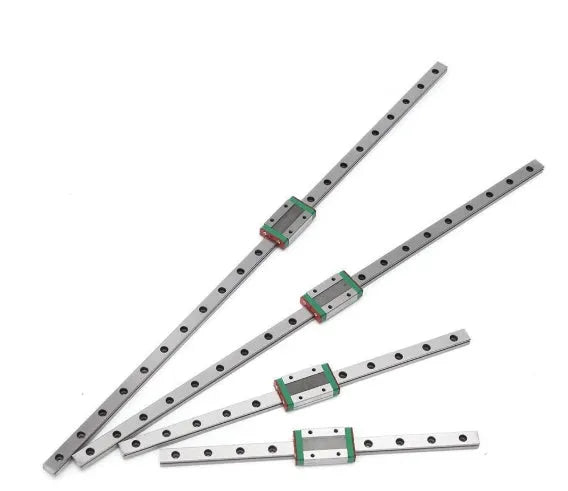

MGN Series Small Linear Guide Block for Miniaturised Precision Equipment
When designing compact machinery, finding a linear motion component that balances small size with high accuracy can be challenging. The MGN series small linear guide block addresses this need with a lightweight, stainless steel construction that resists rust and supports reliable operation. Its Gothic four-point contact design allows the guide to handle loads from all directions, ensuring rigidity without compromising on space. This makes it an ideal choice for miniaturised equipment where precision and durability are paramount. Whether for automation, medical devices, or optical instruments, the MGN series delivers consistent linear motion in a compact footprint.
Features and Construction
The MGN series is built around a simple yet effective design philosophy: maximise strength and accuracy while minimising size and weight. Every component is selected to support precise linear motion in demanding small-scale applications.
Material and Build
Both the slider and slide rail are manufactured from stainless steel, providing inherent corrosion resistance that protects the guide in humid or dusty environments. This material choice also contributes to the guide's rigidity, ensuring minimal deflection under load. The steel ball holder design further enhances reliability by allowing the slider to maintain smooth motion over time.
Size and Practical Fit
The guide block is available in two precision models: MGN12C and MGN12H, with rail lengths spanning from 200mm to 600mm. This range allows engineers to select the appropriate travel distance for their specific application. The compact cross-section of the MGN12 series means it can be integrated into tight spaces without significant modification to existing layouts.
Uses and Placement
The MGN series linear guide block is suited to a variety of precision motion tasks where small size and high accuracy are required. Its robust construction makes it a dependable choice across multiple industries.
Event or Professional Use
In professional automation settings, such as pick-and-place machines or laboratory instrumentation, the MGN guide supports repeatable linear movement with minimal friction. The stainless steel build reduces maintenance concerns, while the four-point contact design ensures consistent performance even under variable loads.
Everyday Home Use
For hobbyists and small-scale projects, such as 3D printers or CNC machine axes, the MGN series provides an accessible solution for linear motion. Its straightforward mounting and interchanged steel ball holder allow easy assembly and replacement when needed.
Benefits and Buying Value
Choosing the MGN series means investing in a component designed for longevity and precision. Its material and engineering advantages translate directly into operational efficiency and reduced downtime.
Reuse and Low Maintenance
The stainless steel construction minimises the risk of rust, extending the guide's service life in environments where moisture or particulate matter is present. Interchangeable steel ball holders also simplify replacement, allowing the user to restore accuracy without replacing the entire assembly.
Why Choose This Product
The combination of compact dimensions, stainless steel corrosion resistance, and a Gothic four-point contact design sets the MGN series apart as a practical choice for engineers seeking reliable linear motion in a small package. Its availability in multiple lengths and two accuracy grades offers flexibility to match specific project requirements.
