PWM DC Motor Governor for Speed Regulation from 5V to 35V with 5A Switch Function

This PWM DC motor governor is a compact speed controller designed for managing DC motors in a wide voltage range. It accepts a direct current input from 4.5V to 35V and provides a regulated output capable of handling currents up to 5A, with a maximum output power of 90W. Its primary function is to offer precise speed control for motors used in DIY electronics, model making, small machinery, and various prototyping applications. The unit's small footprint and specific operational parameters make it a practical component for enthusiasts and professionals needing reliable motor regulation.

Features and Construction

This governor combines specific electronic specifications with user-accessible controls in a minimal housing.

Material and Build

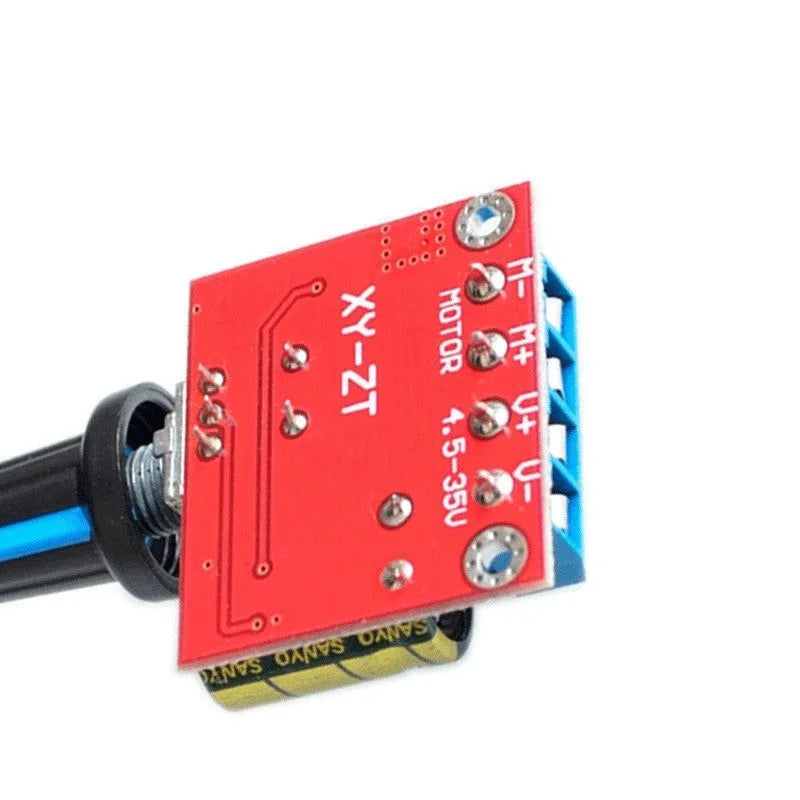

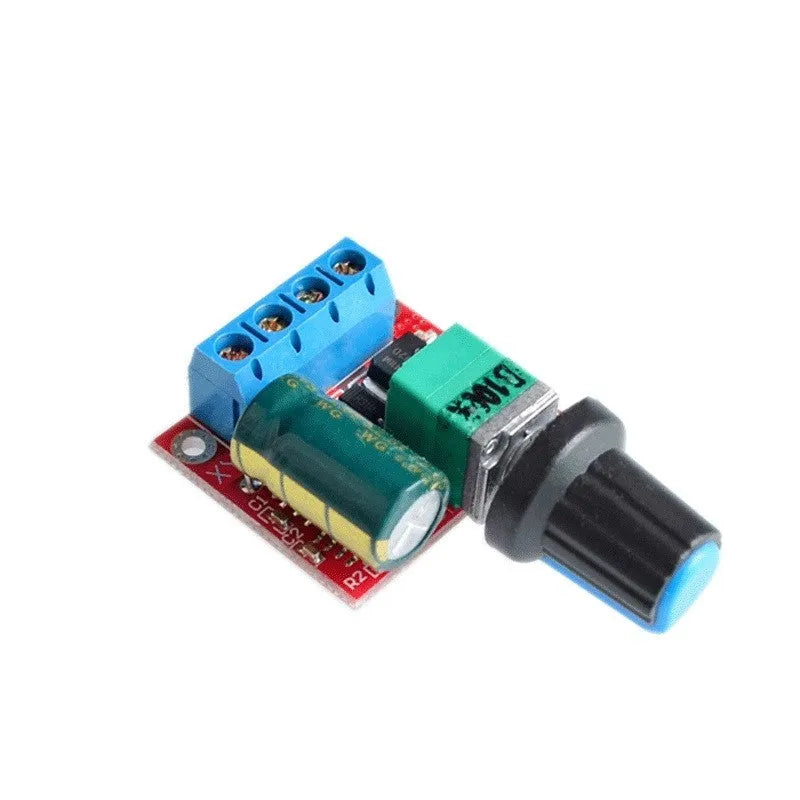

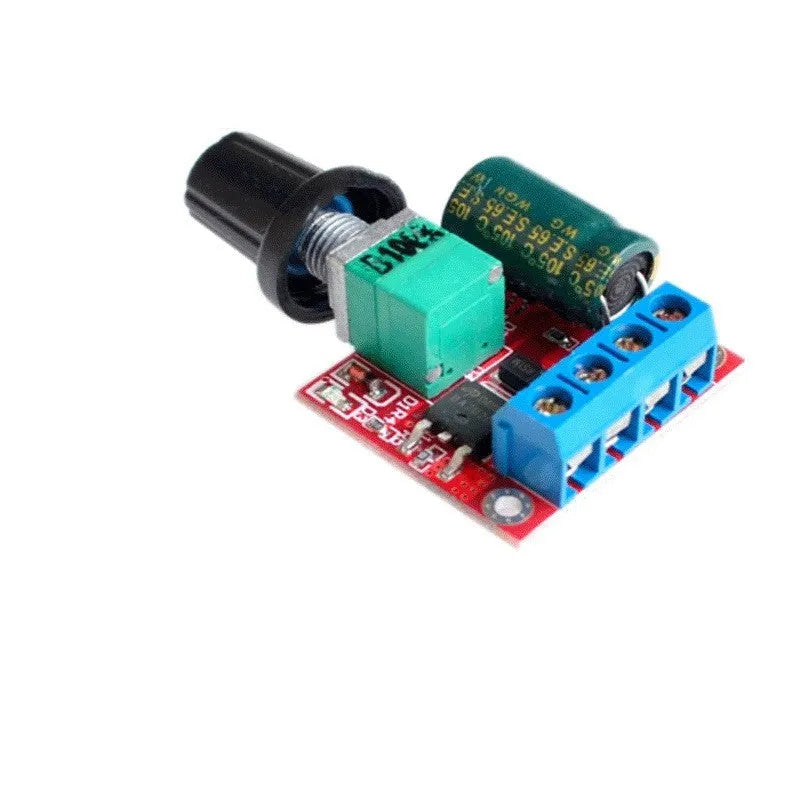

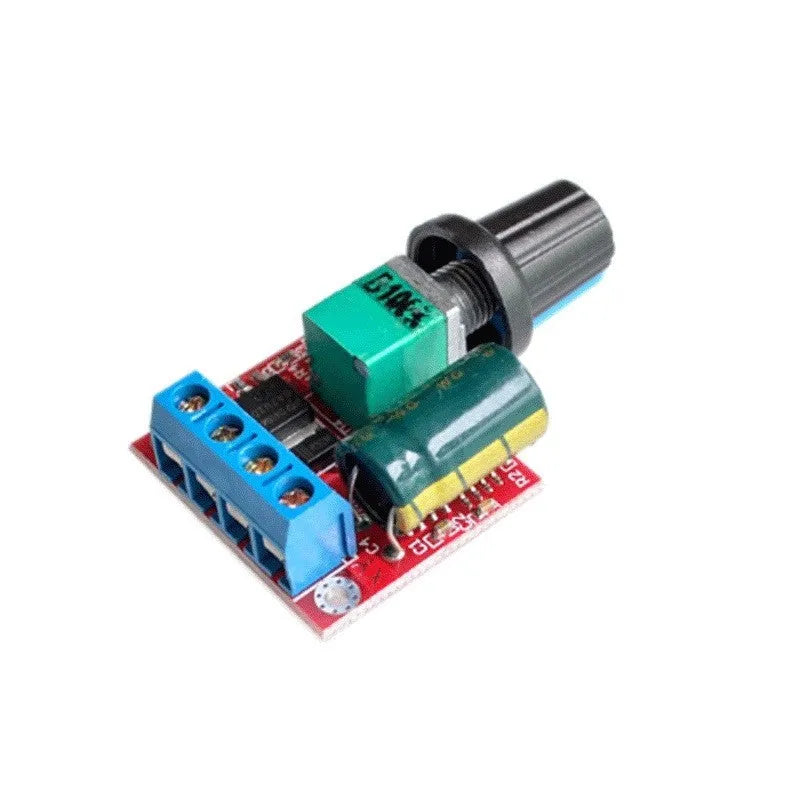

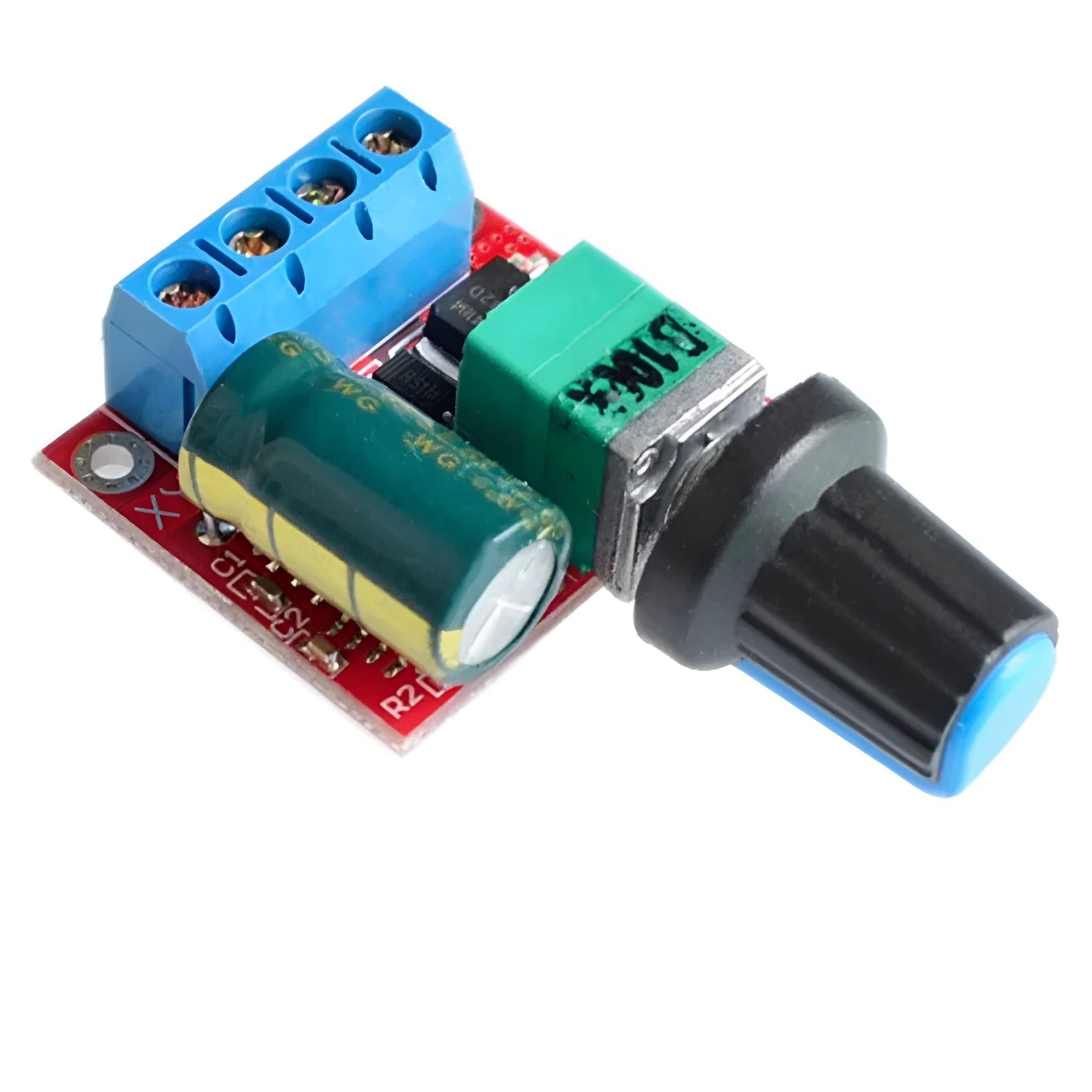

The governor is constructed from standard electronic components assembled on a circuit board to perform PWM speed regulation. It features a switch for power control and an integrated adjustable potentiometer knob. The build is focused on functionality for its designated voltage and current ranges, with a static current draw of just 7 microamperes when in a standby state, contributing to lower power consumption when not actively driving a motor.

Size and Practical Fit

The unit's dimensions are notably compact, measuring 30mm in length, 26mm in width, and 14mm in height. This small size facilitates easier integration into space-constrained projects, control panels, or enclosures. The physical design excludes a handle, keeping the profile minimal. The small form factor is a key practical consideration for builders who need to incorporate motor control without dedicating significant space.

Uses and Placement

The governor's specifications suit it for a variety of direct current motor control scenarios.

Event or Professional Use

In professional or demonstrative settings, such as science exhibits, small automated displays, or controlled mechanical setups, this governor can provide reliable speed management. Its ability to handle up to 5A and 90W makes it suitable for powering small to medium-sized DC motors found in conveyor prototypes, adjustable fans, or precision-movement stages. The clear duty cycle adjustment via the potentiometer allows for fine-tuned control during operation.

Everyday Home Use

For home hobbyists and makers, this unit is applicable for workshops, model railways, robotics projects, or custom cooling solutions. It can regulate the speed of motors in tools like mini lathes, DIY ventilation systems, or decorative moving displays. The straightforward connection and adjustment via the knob make it accessible for users with basic electronics knowledge, provided the critical installation notes are followed.

Benefits and Buying Value

The value of this governor lies in its specified performance range and practical design for motor speed projects.

Reuse and Low Maintenance

The solid-state design with no moving mechanical parts aside from the potentiometer knob suggests potential for reuse across multiple projects with minimal maintenance. Its operation is based on electronic switching at a high frequency of 20khz, which is inaudible and can reduce motor noise. Proper use within its stated voltage and current limits, and adherence to the provided connection warnings, supports its functional longevity.

Why Choose This Product

This PWM DC motor governor offers a defined solution for speed regulation needs within its 4.5V-35V and 5A parameters. Its differentiators include the specific wide input voltage range, the 90W output capability, the compact 30x26x14mm size, and the inclusion of both a switch and an analog adjustment knob. For users searching for a "5V-35V speed controller" or a "5A PWM governor," this product matches those search intents with its concrete, source-supported specifications.
