SMT Double-Sided Splicing Tape in 8mm, 12mm, 16mm, and 24mm Widths for Placement Machines
This splicing tape is engineered for the specific demands of Surface Mount Technology (SMT) assembly lines, where reliable component splicing is critical. It serves as an essential consumable for pick-and-place machines, facilitating the continuous feeding of components during PCB assembly. The tape's formulation prioritises good viscosity and stability, two key properties that ensure components are held securely without slipping or misalignment during the high-speed placement process. Available in several standard widths and colour variants, it allows technicians to match the tape to their machine's specifications and visual verification needs. Its application is strictly for placement machine operation, making it a focused tool for electronics manufacturing environments.
Features and Construction
This product is defined by its practical specifications tailored for industrial use. The available options and physical properties are designed to integrate seamlessly with automated assembly equipment.
Material and Build
The core specification provided is the tape's performance characteristic of good viscosity and stability. This indicates an adhesive designed to maintain consistent tack and holding power under the conditions typical of a placement machine. The substrate material is not detailed in the available information, requiring consultation with customer service for those requiring specific chemical or thermal resistance data. The tape is presented in a standard yellow colour by default, with other colour options available for identification or coding purposes.
Size and Practical Fit

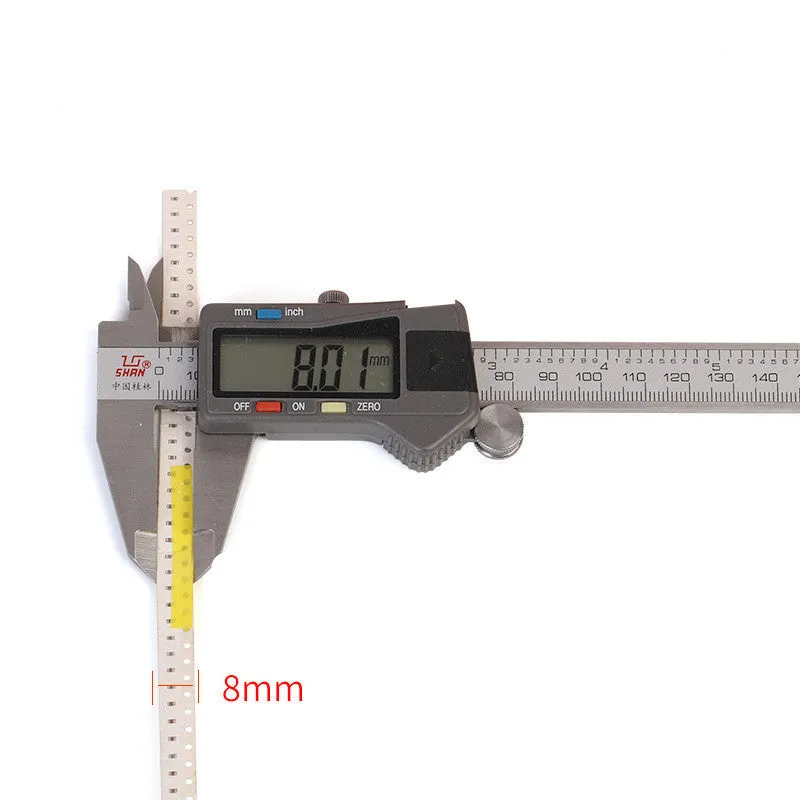

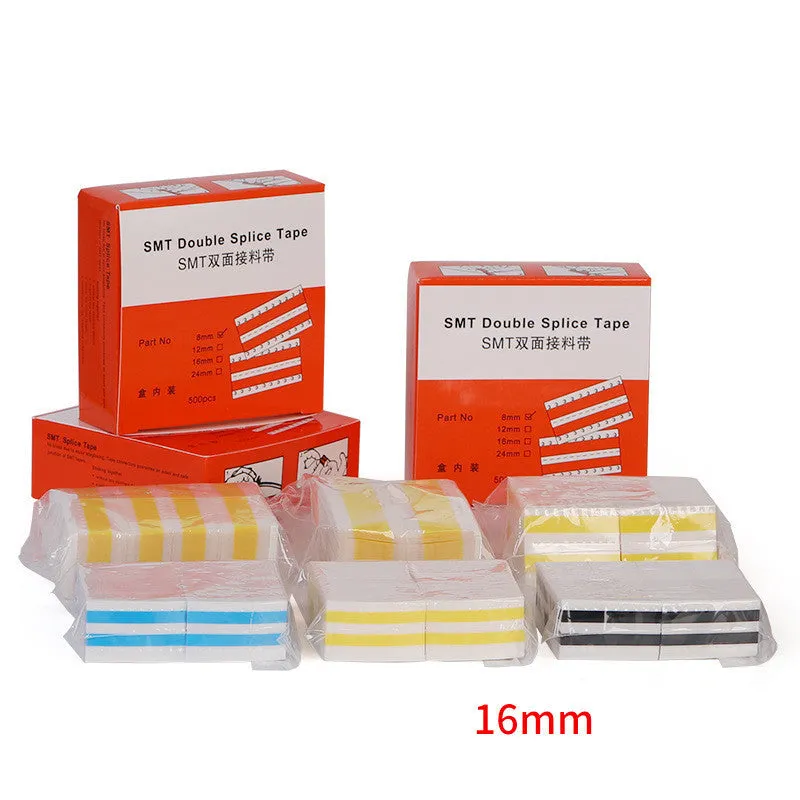

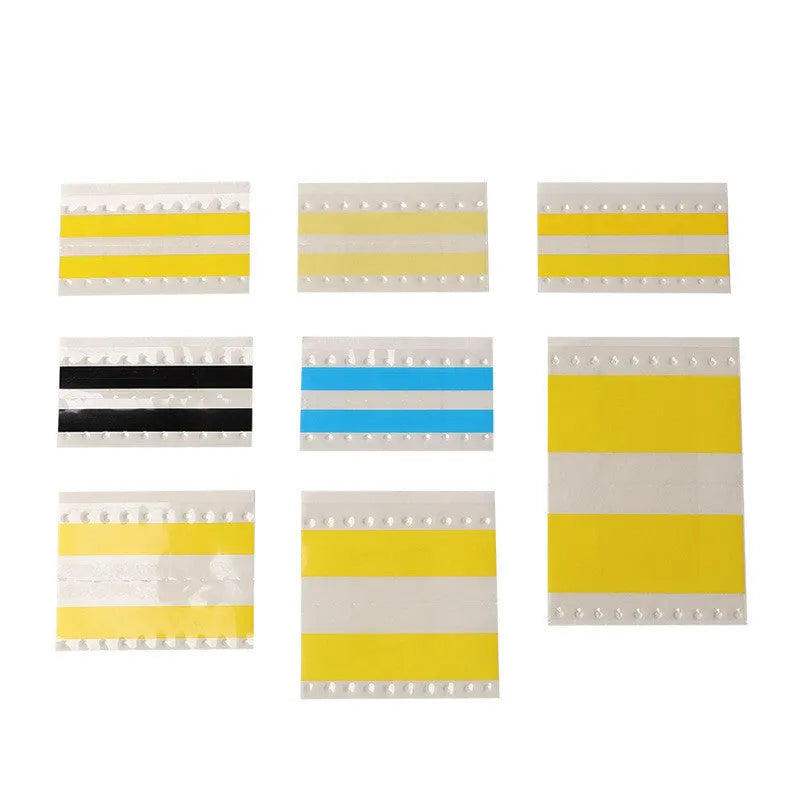

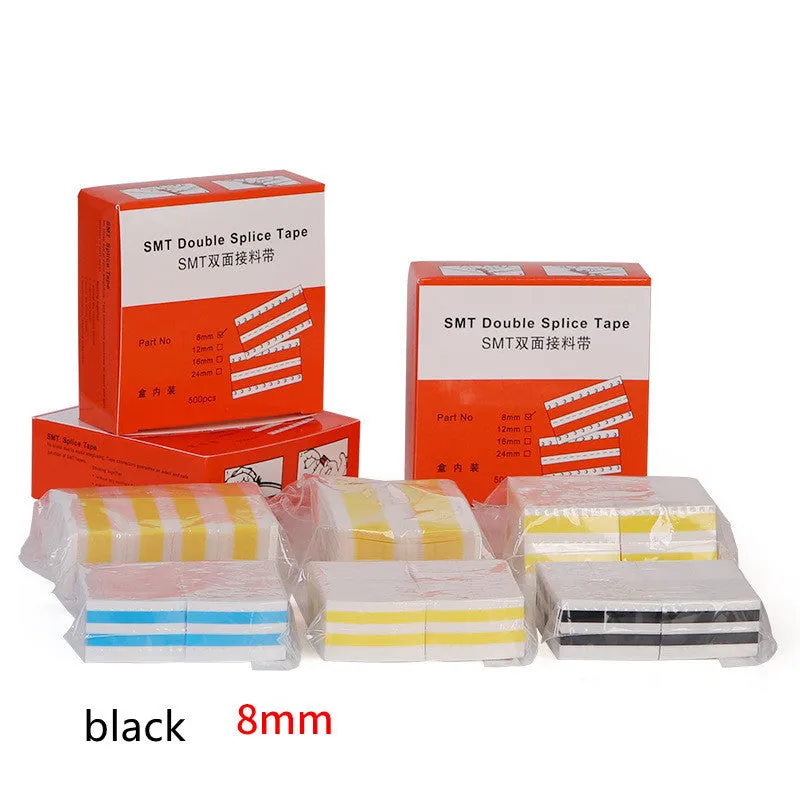

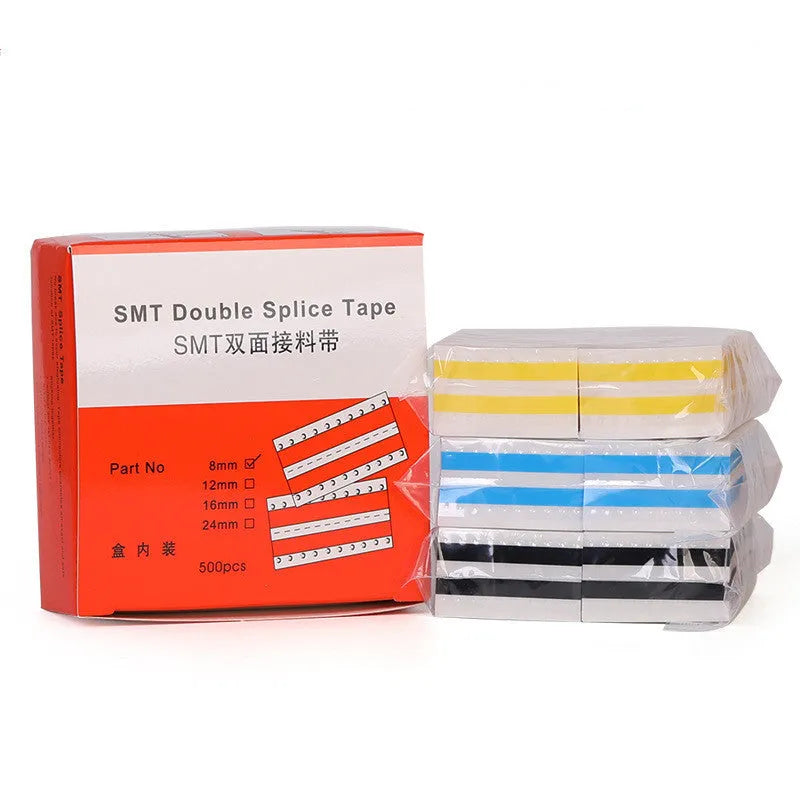

The tape is offered in four distinct widths: 8mm, 12mm, 16mm, and 24mm. This range allows users to select the most appropriate size for the components being processed and the specific feeder mechanisms on their placement machines. The different widths can accommodate everything from small passive components to larger ICs or connectors. The product is supplied on reels, with pack quantities specified per variant: 500 pieces for most 8mm options and Yellow 12/16mm, and 250 pieces for Yellow 24mm.
Uses and Placement
The tape has a single, clearly defined industrial application, which dictates its design and selection criteria.
Event or Professional Use
Its sole intended purpose is for use with placement machines in electronics manufacturing. In this context, the tape is used to splice together the ends of component reels or tapes within the machine's feeders. This allows for continuous production runs without stopping to reload feeders, maximising machine uptime and assembly line efficiency. The requirement for good viscosity and stability is paramount here, as a failed splice can lead to machine stoppages and production defects.
Everyday Home Use
This product is not designed for home, craft, or general-purpose use. Its specifications and performance targets are exclusively for industrial SMT assembly equipment. It lacks the features, packaging, or instructions for any application outside of a professional electronics manufacturing setting.
Benefits and Buying Value
The value of this tape lies in its role as a reliable consumable within a larger, cost-sensitive manufacturing process.
Reuse and Low Maintenance
As a consumable item, the tape is not designed for reuse. Its value is realised through consistent performance during its single use in the splicing process. By providing reliable adhesion, it helps minimise machine downtime caused by splicing failures, which contributes to lower maintenance interventions and higher overall equipment effectiveness (OEE) on the production line.
Why Choose This Product
Choosing this splicing tape involves matching its available specifications to your machine's requirements. The key decision points are the width needed for your components and feeders, and the colour if coding is necessary. The availability of multiple widths (8mm, 12mm, 16mm, 24mm) and several colour options (Yellow, Black, Blue, Nitto Gum) provides flexibility for different production setups. The stated property of good viscosity and stability is the primary performance indicator for ensuring reliable operation within your placement machine system.
