5 10 Inch Contour Gauge Template for Precise Tile Cuts and Pipe Fitting

5 and 10 inch orange plastic contour gauge with teeth for copying shapes, on a tile surface

Measuring irregular shapes for cutting tiles, fitting pipes, or shaping laminates often leads to guesswork and wasted material. This contour gauge replicator solves that problem by instantly capturing the exact profile of any object, letting you mark precise cuts in seconds. Made from durable ABS plastic with an aluminium alloy frame, it is light, strong, and non-rusting. With 0.01mm accuracy and high-definition marking, this tool makes measurement and cutting easier for woodworking, automotive sheet metal, stainless steel, and other contour copying tasks.

Features and Construction

5 and 10 inch orange plastic contour gauge with teeth for copying shapes, on a tile surface

This contour arc ruler is built for reliable, repeatable copying of shapes. Its materials and design ensure it conforms closely to objects and holds the pattern for transfer.

Material and Build

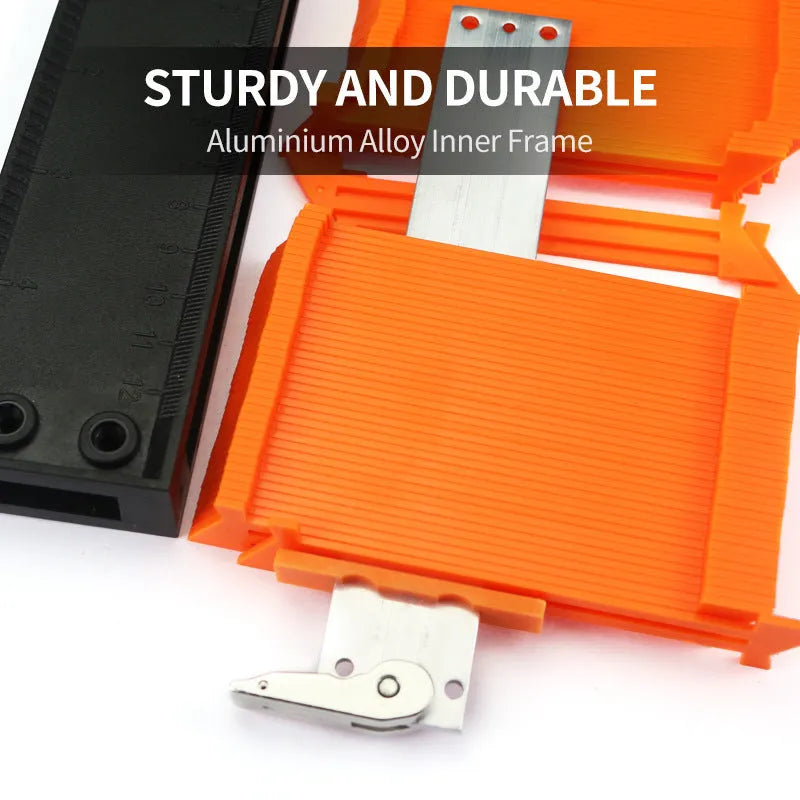

The gauge uses an aluminium alloy frame combined with ABS plastic teeth. The frame provides structural support without adding weight, while the plastic teeth are light, strong, and non-rusting. This combination means the gauge can be used on metal, wood, or tiles without scratching surfaces, and it will not corrode over time.

Size and Practical Fit

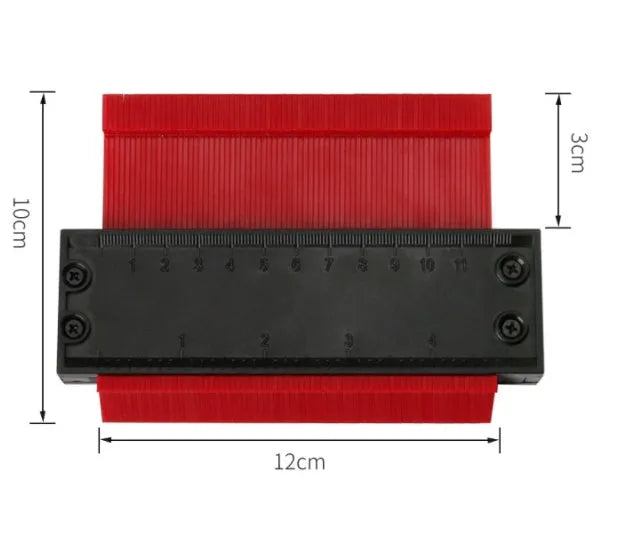

Two sizes are available: a 5-inch (125mm) version measuring approximately 12x10x3cm, and a 10-inch (250mm) version measuring approximately 25x10x3cm. The measuring range is 0-250mm with an accuracy of 0.01mm. Choose the smaller size for tight spaces or the larger size for broad contours like floor tiles or large pipes.

Uses and Placement

5 and 10 inch orange plastic contour gauge with teeth for copying shapes, on a tile surface

This contour duplicator handles a variety of tasks around the home and workshop. Its design makes it especially useful for copying shapes around obstacles and transferring them to cutting materials.

Event or Professional Use

For professionals in woodworking, automotive repair, or sheet metal work, the gauge speeds up the process of marking repeat cuts around circular frames, ducts, or irregular panels. Its high-precision calibration ensures consistent results across multiple pieces, saving time and reducing waste.

Everyday Home Use

Home DIY enthusiasts can use it for tiling around pipes, fitting laminate flooring against walls, cutting carpet to shape around door frames, or copying the edge of a broken piece to make a replacement. The simple press-and-trace method requires no special skills.

Benefits and Buying Value

5 and 10 inch orange plastic contour gauge with teeth for copying shapes, on a tile surface

This tool offers practical advantages over traditional measuring methods, particularly in reducing material waste and increasing accuracy.

Reuse and Low Maintenance

The non-rusting plastic and aluminium construction mean the gauge can be used repeatedly without deterioration. No special care is needed—just wipe it clean after use. The teeth hold their shape for hundreds of impressions.

Why Choose This Product

With 0.01mm accuracy, two size options, and a material combination that is both light and strong, this contour gauge delivers reliable results for a wide range of copying tasks. It eliminates the frustration of estimating curves and provides a fast, repeatable method for marking precise cuts.
